Features


PRIMARY APPLICATION: uncompromised amplification power at a very attractive price. Ideal for medium power stations.

AMPLIFIER FEATURES: high-gain amplifier with very low input drive power requirement and adjustable power output from 10 to 100 %.

HARDWARE FEATURES: compact (525mm depth only) and indeformable thanks to the stainless steel chassis, in 3 rack units only.

USER-FRIENDLY FEATURES: four pushbuttons for user/device interaction and software that offers a simple, intuitive interface.

OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.

EASE OF MAINTENANCE: advanced module engineering ensures extreme ease of access and simple maintenance.

RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.

INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.

REMOTE CONTROL: electromechanically controllable and integrable into all digital RVR telemetry systems.

REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.

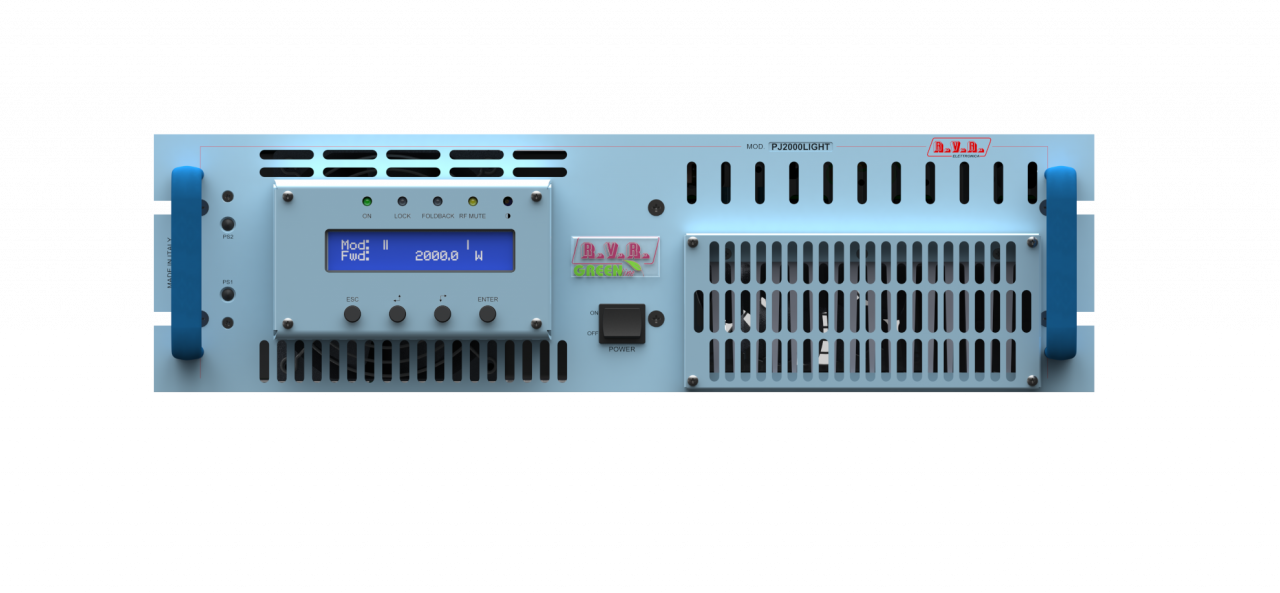

PJ2000LIGHT
Parameters	Conditions	U.M.	Value	Notes
GENERALS
Frequency range	MHz	87,5 ÷ 108
Rated output power	W	2000
Spurious & harmonic suppression	dBc	<75 (80 typical)	Meets or exceeds all FCC and CCIR rules
Working temperature	°C	-5 to +50
Working humidity	%	95	Withoutcondensing
Working altitude	mt	Up to 3000 *	* With adequate air evacuation system in site
POWER REQUIREMENTS
Power supply type	Monophase
AC Power input	AC Supply Voltage	VAC	230  ±15%
AC Apparent Power Consumption	VA	2862
Active Power Consumption	W	2857
Overall Efficiency	%	Typical 70
Power factor	0,998
Connector	Terminal Block
DC Power input	DC Supply Voltage	VDC
DC Current	ADC
MECHANICAL
Phisical dimensions	Front panel width	mm / inch	483  /  19	EIA rack
Front panel height	mm / inch	132  /  5 1/4
Overall depth	mm / inch	550  /  21,65
Chassis depth	mm / inch	500  /  19,69
Weight	kg	About 25
Cooling type	Forced, with internal fan
Acoustic noise	dBA	< 75	Leq 3 min @ 1 m
RF INPUT
RF Input	Connector	N type
Impedance	Ohm	50
Driver power for rated output	W	25
Max input power before protection	W	30
RF OUTPUTS
RF Output	Connector	7/16"
Impedance	Ohm	50
RF Monitor	Connector	BNC
Impedance	Ohm	50
Output Level	dBc	approx. -60
AUXILIARY CONNECTIONS
Interlock	Connector	2 x BNC	For remote power inhibition (short is RF off)
Service	Connector	DB9 F	Factory reserved for firmware program
I²Cbus	Connector	DB9 F
Telemetry interface	Connector	DB25 F
FUSES
On mains	2 External F 25 T - 10 x 38 mm
On services	1 Internal F 3,15 A 2 x 20 mm
On PA Supply	3 Internal F 25 A 10 x 38 mm
On aux VDE Socket	X

The image of this layout is purely demonstrative and may change without notice.
